Value Tree List
A Value Tree List is a list building block that can be used for value tree statements. This type of list contains attributes for positioning of the blocks and is used for Value Tree Reports.

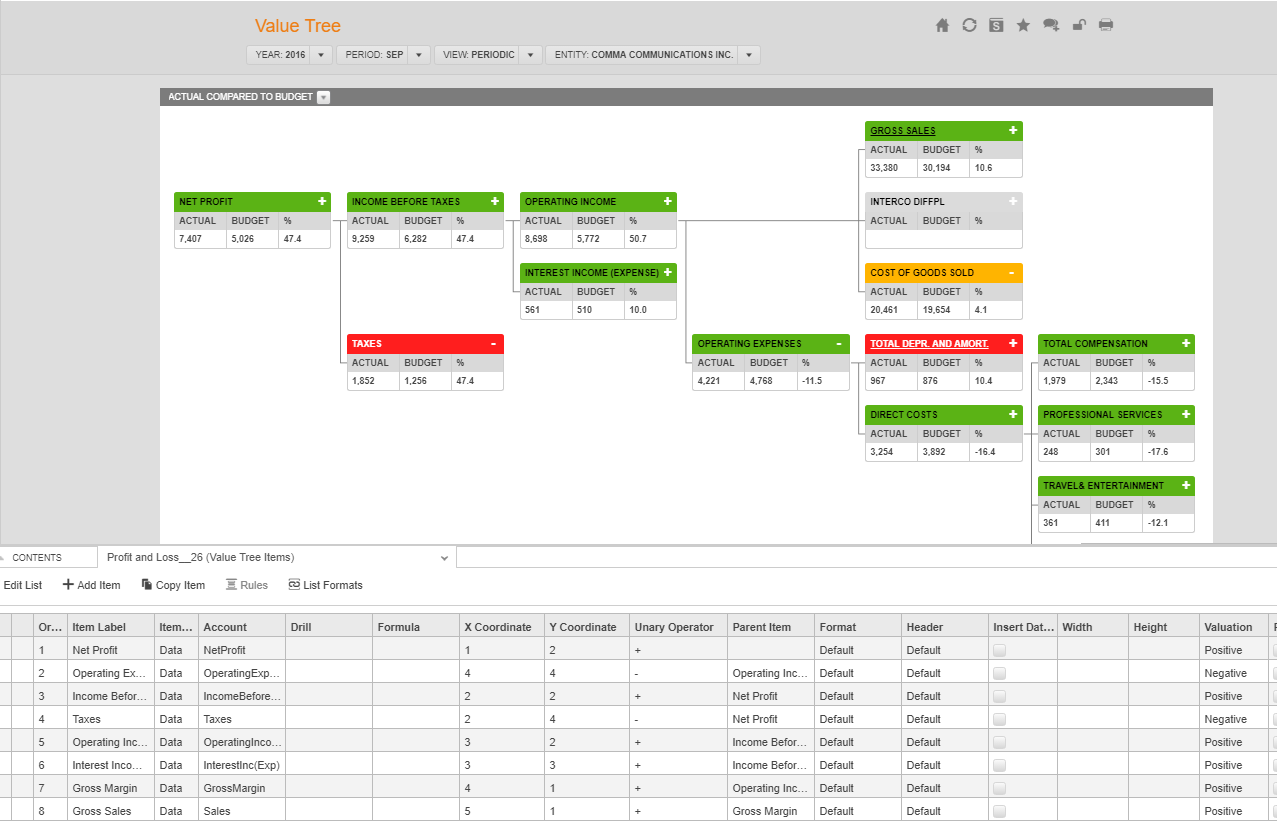

Example:
List Attributes
List Attribute |
Description | Available Values |
Default |
|---|---|---|---|
| Order | Use the order attribute to reorder the rows. | 1, 2, 3... | Max + 1 |
| Item Label | The default name of the item is displayed. | n/a | n/a |
| Dimension1 ...Dimension n | A column for each of the dimension on which the list is created. A member or a variable can be selected | Member or a Variable | n/a |
| Drill | By assigning a drill list to a row, a drill icon will appear in front of the line in the report. This drill list allows the end-user to drill to that list. If a dimension member of an item is a parent in the dimension hierarchy then the end user can also assign a dynamic drill to an item instead of another list. | Empty, Populated | Empty |
| Formula | By specifying a formula this line will be calculated. | Empty, Populated | Empty |
X Coordinate |
The X coordinate defines the position of the tree member on the X Axis, see screenshot for the X positions. |
0, 1, 2, 3, ... | 0 |
Y Coordinate |
The Y coordinate defines the position of the tree member on the Y Axis, see screenshot for the Y positions. |
0, 1, 2, 3, ... | 0 |
Unary Operator |
The unary operator defines the symbol (See screenshot) in front of each tree member. |
+, -, /, * | + |
Parent Item |
Select a list item so that the tree member will be connected with a line to the parent tree member. |
Empty, Populated | Empty |
Format |
The format attribute will specify the look and feel of the row. This format is not applied to the header of the row, but only to its values. |
Default, Default_bold, Default_left, ... | Default |
Header |
The header format, defines how the row header should be formatted. The available values are identical with the ones used by the "Format" attribute, but applied only on the row header. |
Default, Default_bold, Default Highlighted Header, ... | Default Format |
| Insert Data Label | Use this filed to determine whether the item value will be displayed.Relevant for chart reports only. | Yes/No | No |
| Width | Determines the width of a column | Empty, Populated | Empty |
| Item Type | Determines the Type of the Item | Label Only, Data, Commant | Data |
Reverse Sign |
When this attribute is set to yes, the sign will be flipped. |
No, Yes | No |
| Visible | This value determines whether a column will be visible in the report. | Yes/No | Yes |
Suppress Value |
This value sets automatic row suppressing, click on the type to see the suppressing options. |
None, SuppressNoData, SuppressZeros, SuppressNoDataAndZeros |
None |
Suppress Variance |
Allows you to set the conditions for not suppressing the Variance, by using a pick list |
SuppressNoBaseOrReference, Suppress, NoSuppress, SuppressNoBase, SuppressNoReference |
SuppressNoBaseOrReference |
| Redirect Report | Use this field to select an existing report that will be available through a hyperlink. | Empty, Populated | Empty |
Note: When you redirect to a report of type Multi-Column and that report has the same Value Tree List as an Item Selector, the Multi-Column report will automatically select the tree member where it was redirected from.
