MSAD Authentication Plugin

CXO can authorize users using Active Directory Domain Accounts for login. This article explains here how you can do this.

Do note, it is only possible to use 1 kind of authentication, it's either MSAD or Proprietary not both. When you change to MSAD the built in accounts will not work and vice versa.

Each domain user needs to be registered in the CXO application. For an existing application you will need to setup an initial domain user in CXO before switching to domain authentication:

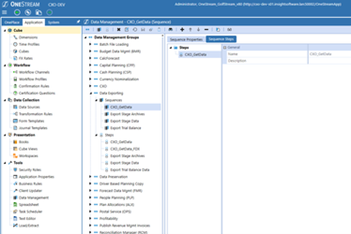

1) Add Domain User to the Maintain Users list (Note: The User ID column should contain the user’s domain account name and the “Location” column should be filled with the “fully qualified” domain name:

2) Configure the CXO to use Domain Authentication.

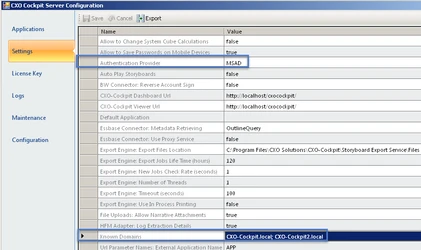

• Start the CXO configurator go to settings and change the authentication provider to MSAD
•  Add the domain name to "Known Domains", you can add multiple domains by adding a semicolon in between domain names.
• Save the changed settings

Now when you start the design studio or the website you should have a domain name to login to:
