Export Usage Data

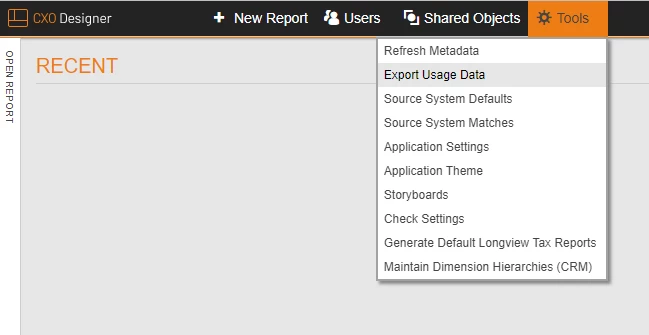

Go to CXO Design Studio, under Tools select Export Usage Data.
Usage Data
Export to have an overview in Excel of the actions done in CXO by the users.
Activities
The Full Log gives an overview of every logged occurrence. The log can be filtered and sorted by any column.
Column |
Description |
ID |
Log entry number |
Date |
Date and time of occurrence |
Application id |
The specific application that the user was active |
Activity type |
Type of occurrence |
Eentity |
Which entity |
User id |
User id |
User groups |
Name of the user group |
Template |
Template on which the report is based |
Report |
Report |
Session id |
HTTP session id to uniquely identify a CXO session |
Agent |
Agent used - Design Studio / Desktop / IE7 / IE8 / IPad / Unknown etc. |
Sessions
An overview of unique user sessions
Column |
Description |
Session id |
Generated id to uniquely identify a CXO session |
| Application id | Application id |
Session start |
Date and time the session started |
Session end |
Date and time the session ended |
Username |
User id |
Type |
CXO or Viewer session |
Agent |
Agent used - Design Studio / Desktop / IE7 / IE8 / Ipad / Unknown etc. |
Concurrent Users Sessions
This is a Report that shows the maximum number of concurrent users per month. It shows the concurrent CXO users, the CXO users together with the CXO-Viewer users and the date and time on which the maximum occurred.
Column |
Description |
Month |
The month of the session |
Max concurrent session |
The amount of sessions |
Peak Moment |
Where the peak in the month was |
Audit Trail
Export to have an overview in Excel of the changes made by the different admins.
Column |
Description |
Date |
Date and time of occurrence |
Action Type |
Where the action is performed e.g. Report/ Security etc. |
Username |
User that performed the action |
Action |
The action that is performed. |
