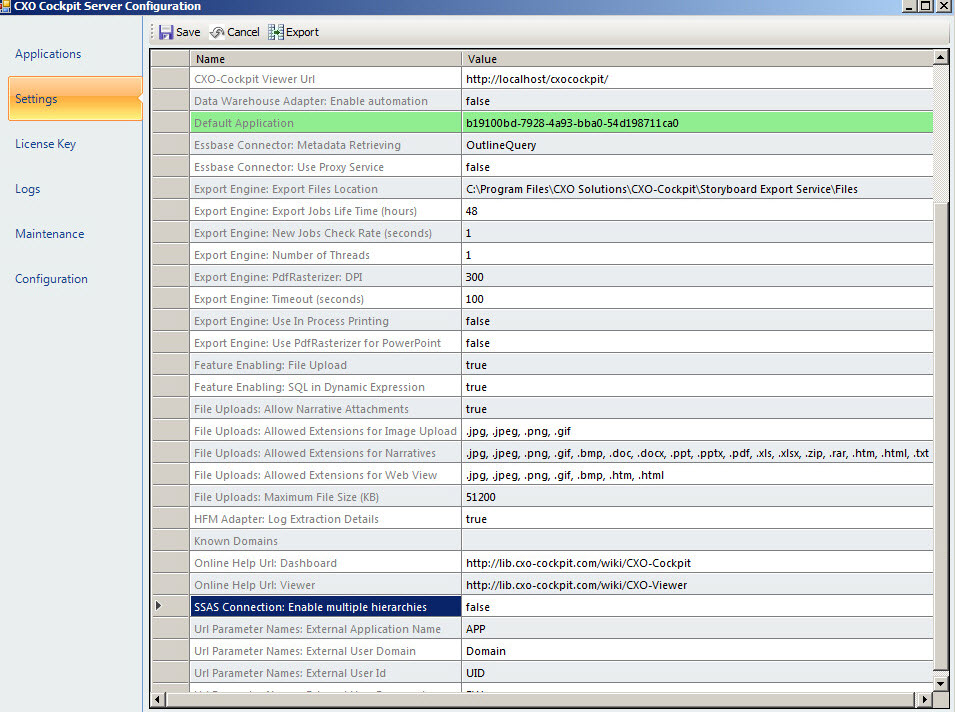

Configurator Settings
Settings menu contains all the settings from the configuration files:
These are CXO installation-wide settings. There are also settings on the level of individual applications and even on the level of Source System.
| Name | Allowed Values | Meaning |
|---|---|---|
| Allow to Change System Cube Calculations | True, False | |
| Allow to Create Views | True, False | |
Allow to Save Passwords on Mobile Devices |
True, False | |
| Allow to Store User Names in Usage Logging | True, False | |
| Authentication Provider | Proprietary, MSAD, LDAP, Essbase | |
| Auto Play Storyboards | True, False | |
| BW Connector: Reverse Account Sign | True, False | |
| BW Connector: Close connection after query | True, False | If true, there will be separate connections to SAP BW for every query. If false, there will be a connection for every open CXO instance. Setting this to true makes it less likely that SAP BW has 100 connections open at the same time. Downside of setting it to True is that there will be no caching. So, if the same query is run twice, the processing time will be the same. When this setting is set to false, the second time the query will run faster. |
| CXO Viewer Url | ||
| Default Application | ||
| Essbase Connector: Metadata Retrieving | Outline Query, MDX | |
| Essbase Connector: Use Proxy Service | True, False | |
| Export Engine: Export Files Location | ||
| Export Engine:Export Jobs Life Time (hours) | ||
| Export Engine: New Jobs Check Rate (seconds) | ||
| Export Engine: Timeout (seconds) | ||
| Export Engine: Use in Process Printing | True, False | |
| Feature Enabling: Avoid Overlapping Chart Labels | True, False | Enabling this feature optimizes chart label position and attempts to avoid overlap in the charts |
| Feature Enabling: File Upload | ||
| Feature Enabling: SQL in Dynamic Expression | ||
| File Uploads: Allow Narrative Attachments | True, False | |
| File Uploads: Allowed Extensions for Image Upload | ||
| File Uploads: Allowed Extension for Narratives | ||
| File Uploads: Allowed Extensions for Web View | ||
| File Uploads:Maximum File Size (kB) | ||
| HFM Adapter: Log Extraction Details | True, False | |
| Known Domains | ||
| Online Help Url: Dashboard | ||
| Online Help Url; Viewer | ||
| SSAS Connection: Enable multiple hierachies | True, False | hierarchies |
| SSO: Skip application selection for single app | True, False | |
| Url Parameter Name: External Application Name | ||
| Url Parameter Name: External User Domain | ||
| Url Parameter Name: External User Id | ||
| Url Parameter Name: External User Password | ||
Use CXO Identity Provider |
True, False |
|
CXO Identity Provider Url |
True, False |
|
CXO Dashboard Url |
True, False |
|
CXO Viewer Url |
True, False |
