Add a border or line around free format objects

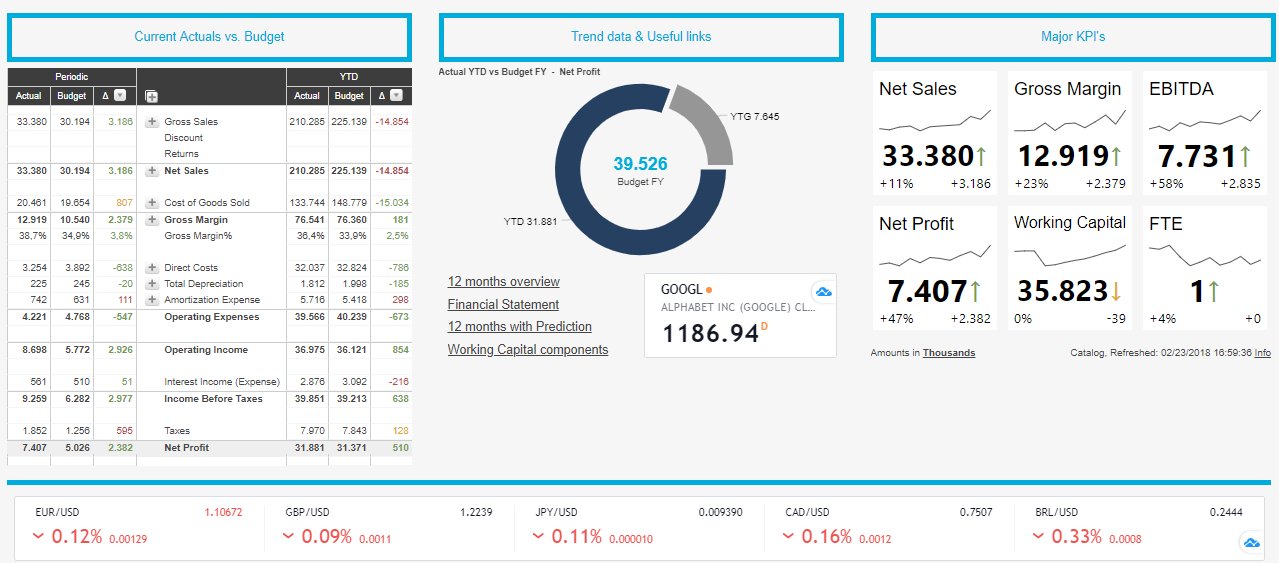

When you would like to add a border around objects (see below example)

There are 2 different options:

1. Add an image with the exact display.
2. Add a label with an HTML script which will resize automatically

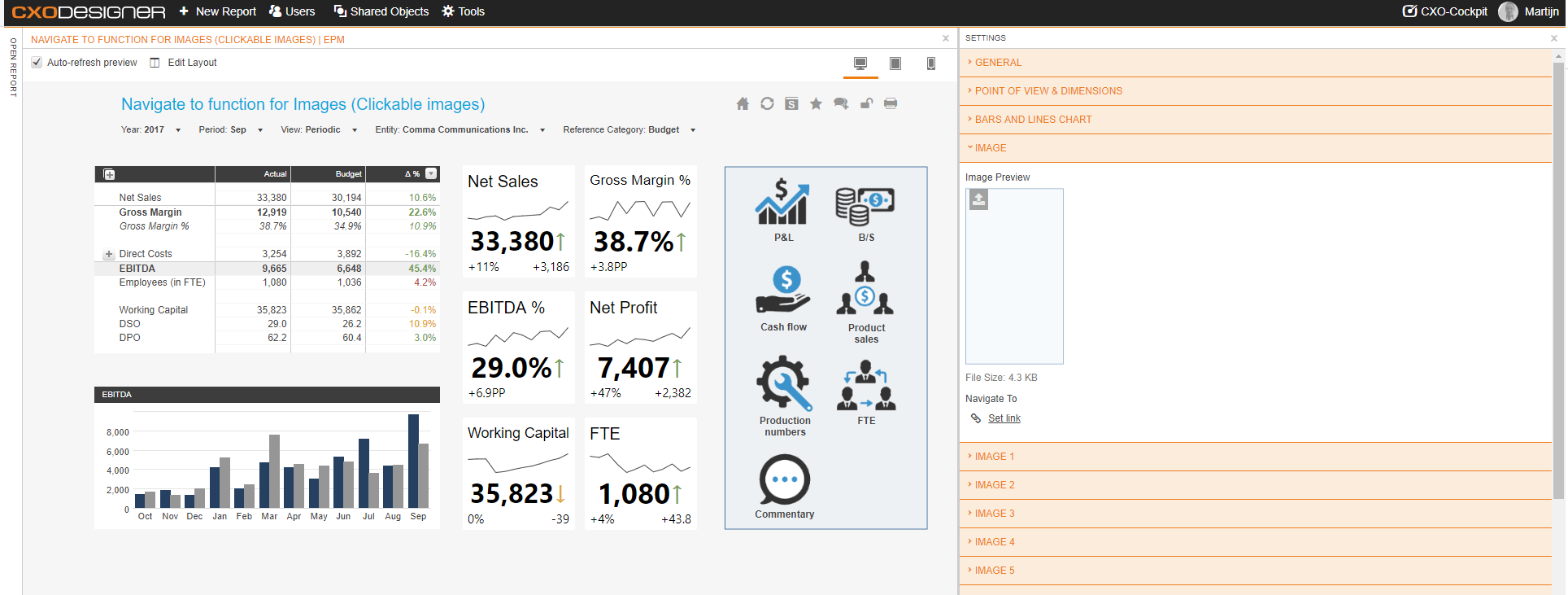

Option 1: (static)

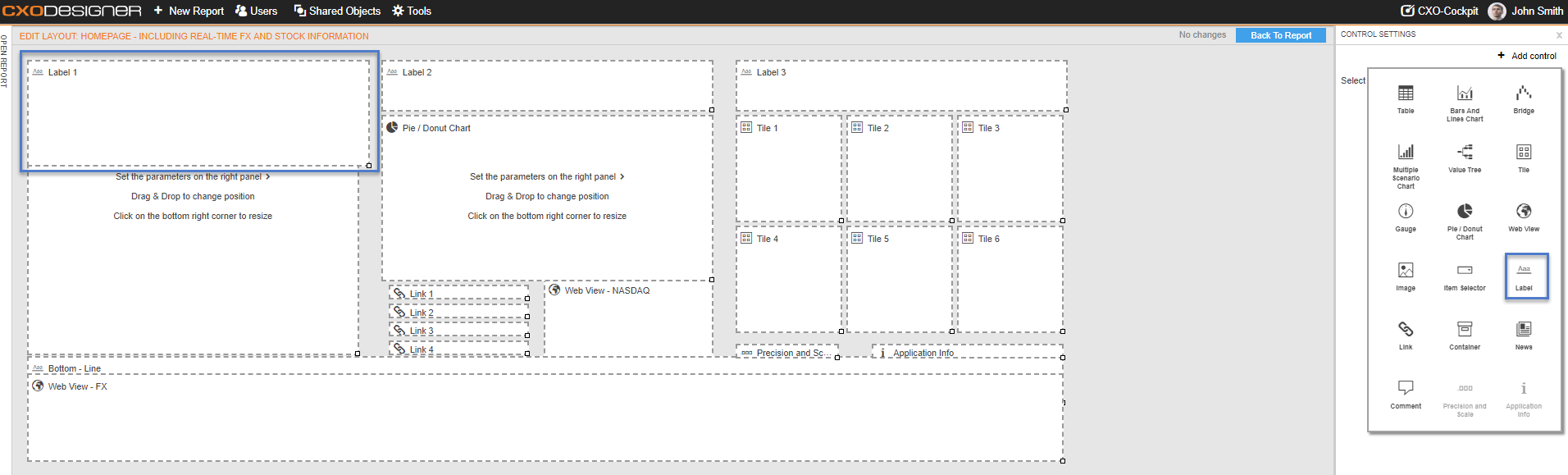

• Insert a label control
• Add the image

Option 2: (dynamic size)

• Insert a label control

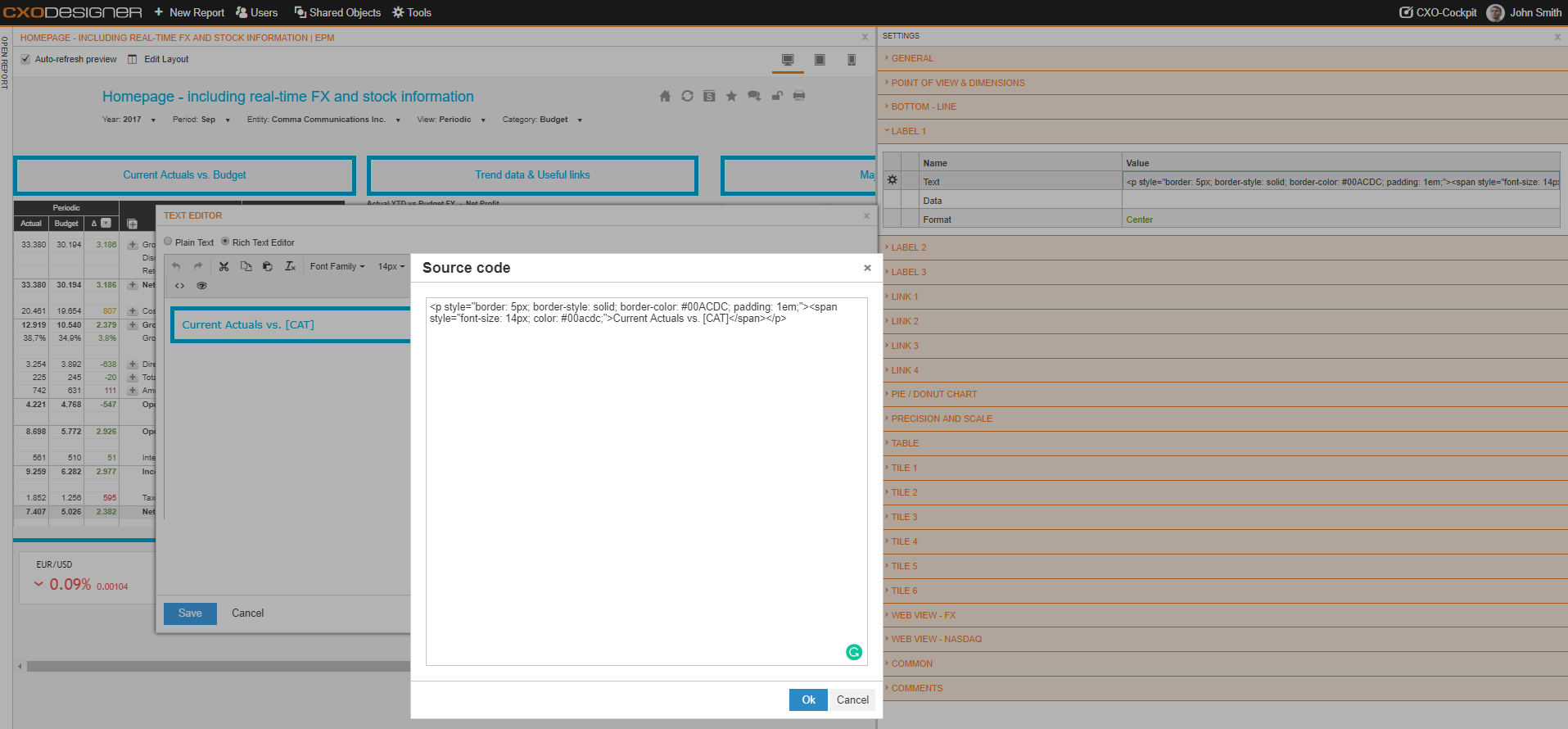

• Add HTML code in the label section

The following HTML scripts can be used:

Box:

<p style="border: 5px; border-style: solid; border-color: #00ACDC; padding: 1em;"><span style="font-size: 14px; color: #00acdc;">Current Actuals vs. [CAT]</span></p>

In case you would like a line instead of a box, the following HTML script can be used:

Line:

<p style="border-top: 5px; border-top-style: solid; border-top-color: #00ACDC; padding: 1em;"><span style="color: #ffffff;">.&nbsp;</span></p>
