Azure Active Directory as SAML Identity Provider

Step by step tutorial for setting up Azure Active Directory to work with CXO Service Provider

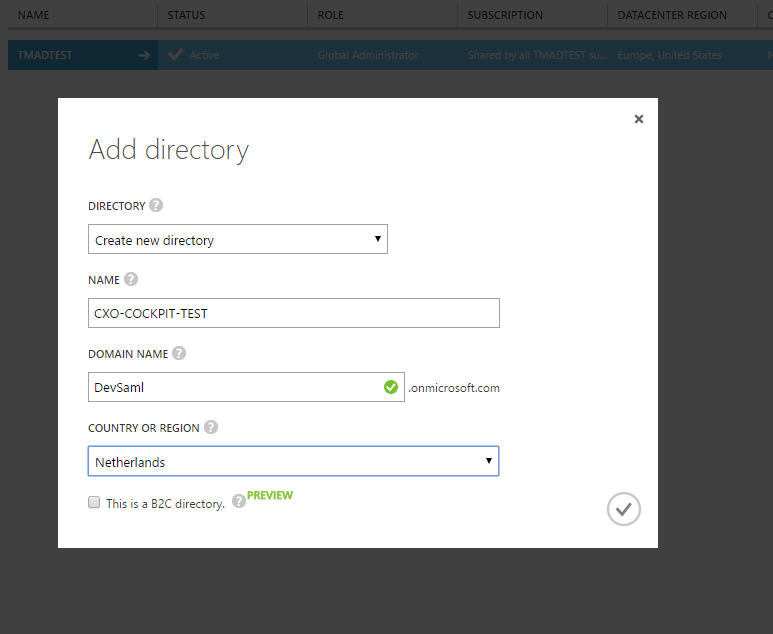

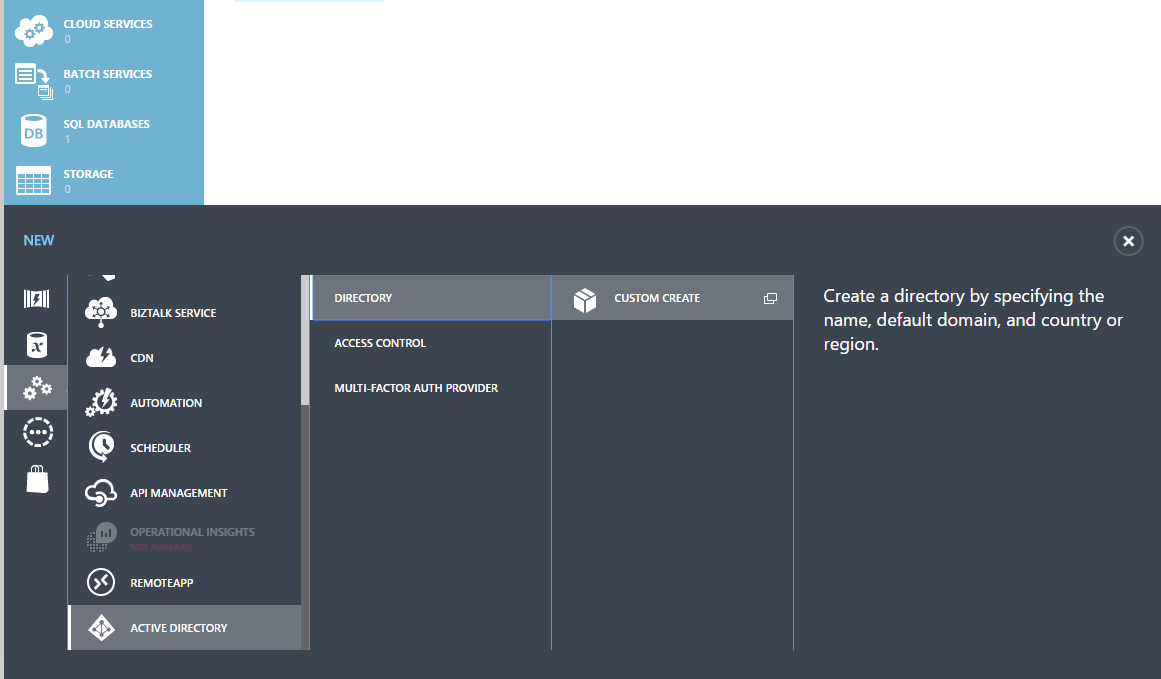

Create Azure Active Directory

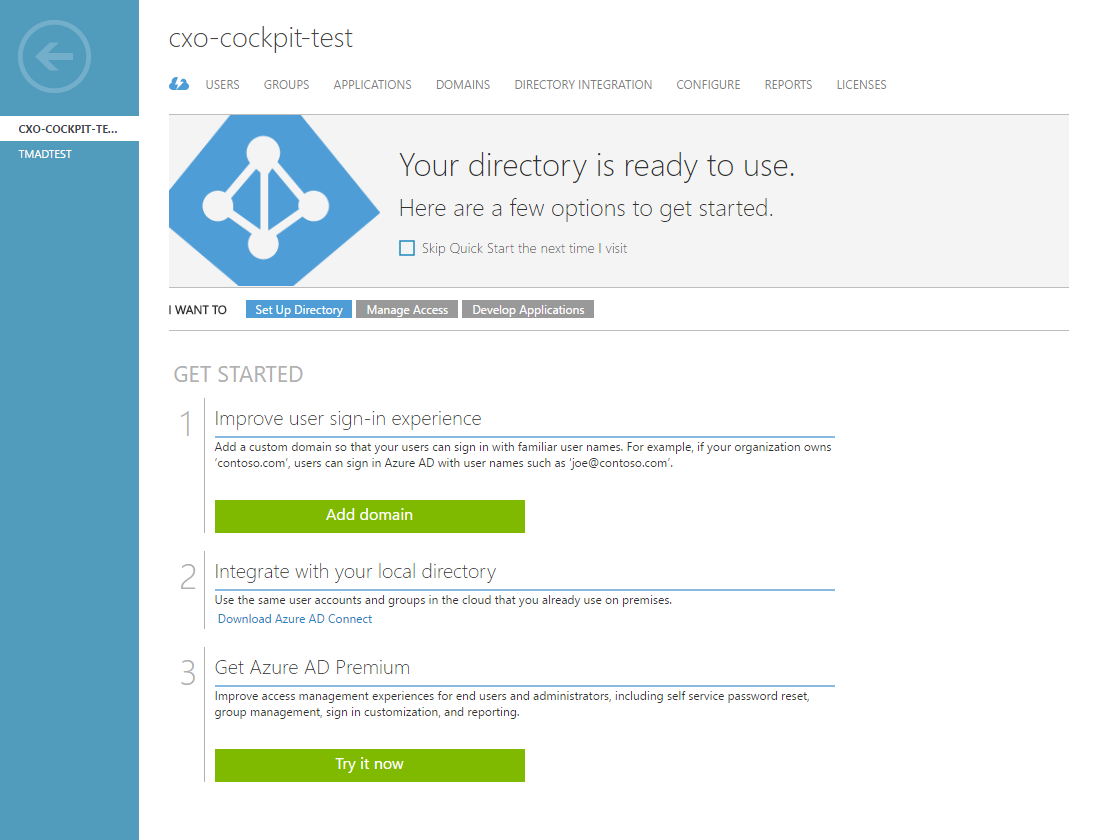

Choose newly created Active Directory

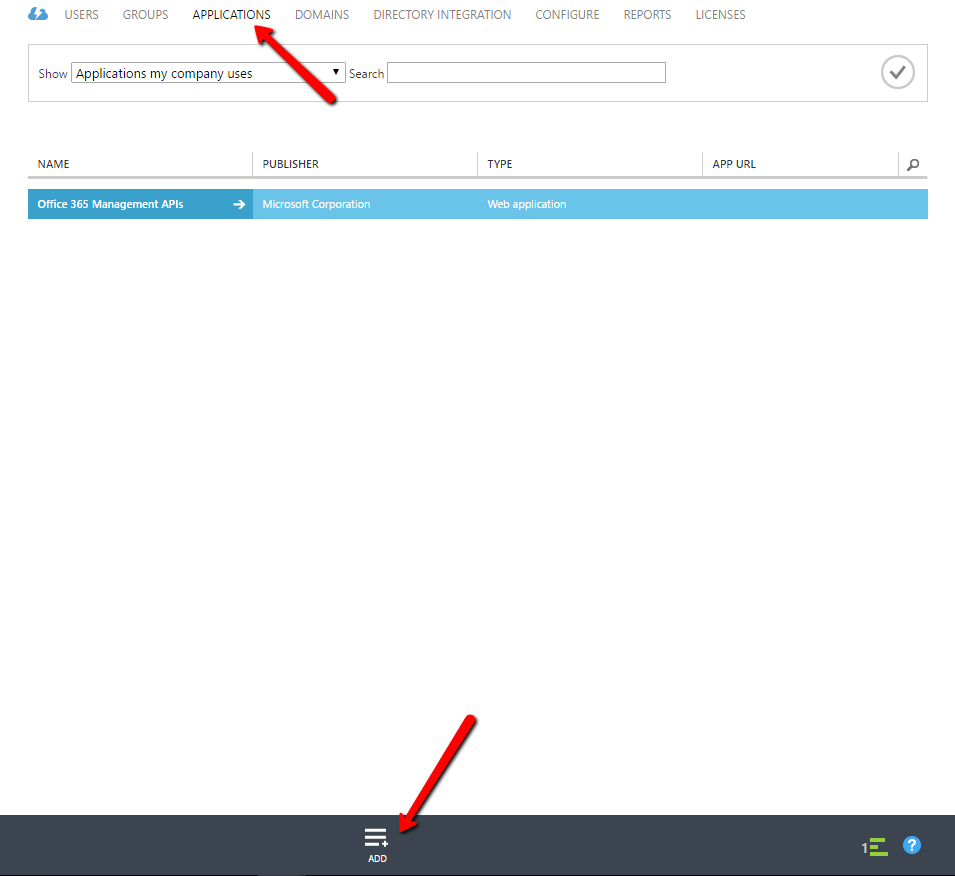

Click Application tab then click "Add" button

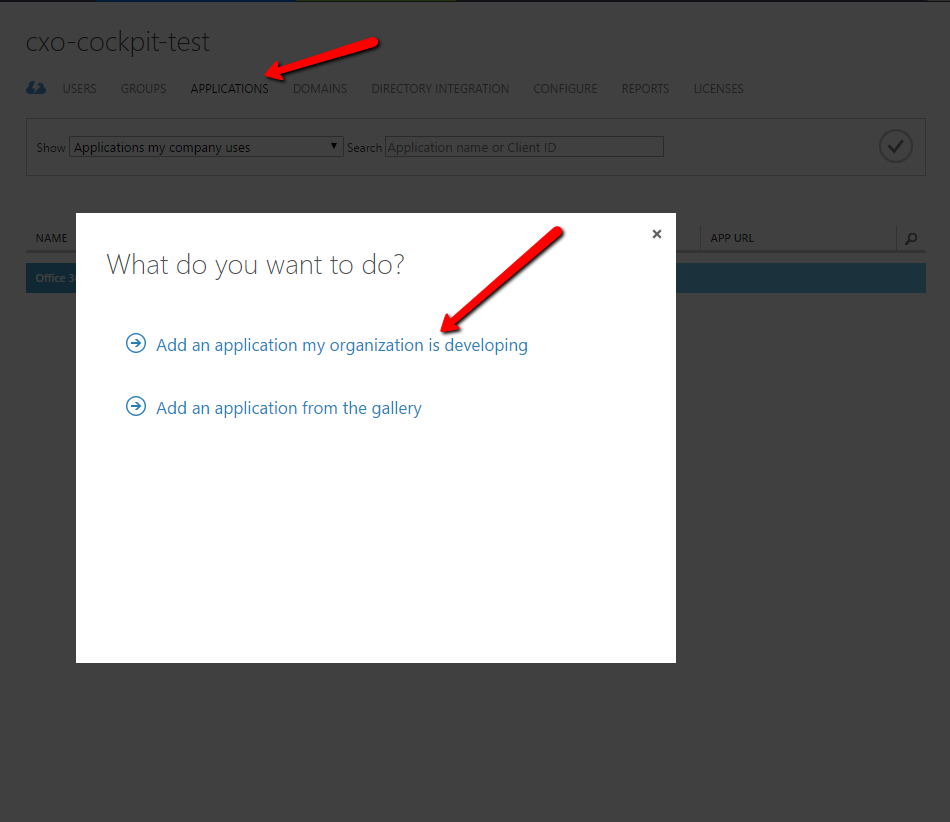

Choose "Add an application my organization is developing"

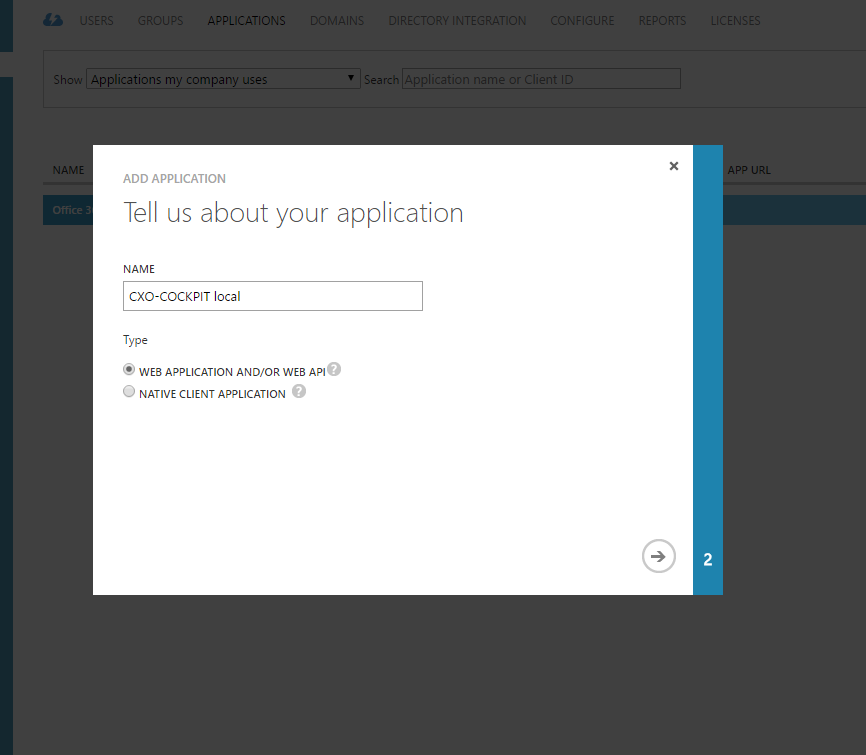

Fill in a name

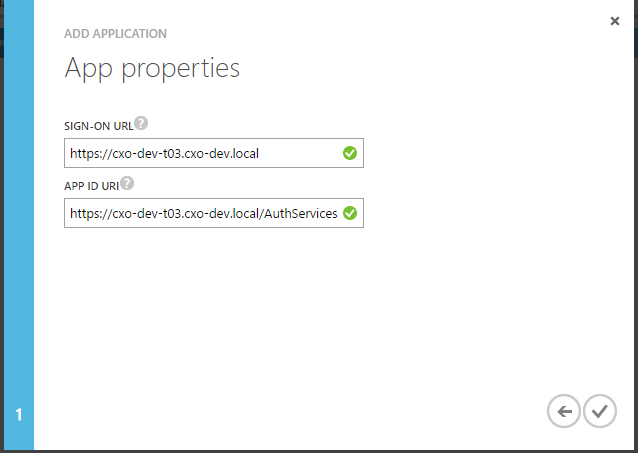

Fill in properties

Specify Logout url in azure portal to:

{baseUrl }/AuthServices/Logout

E.G.

https://cxo-abc-abc/AuthServices/Logout

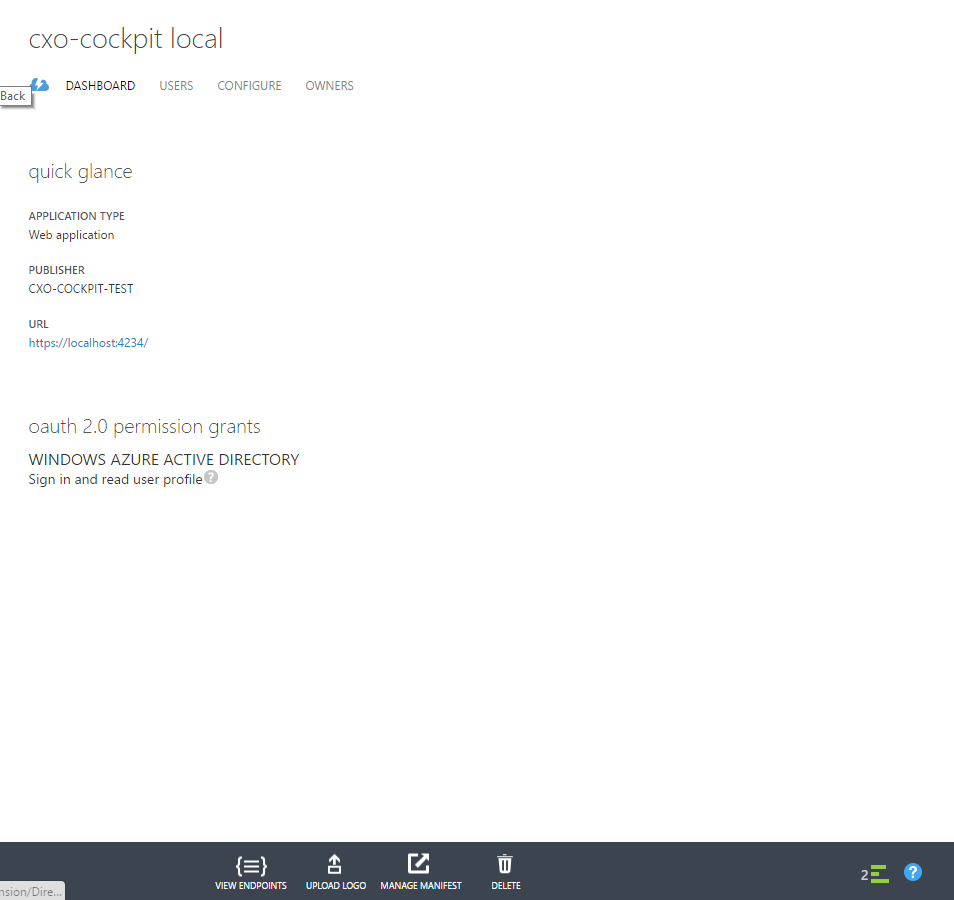

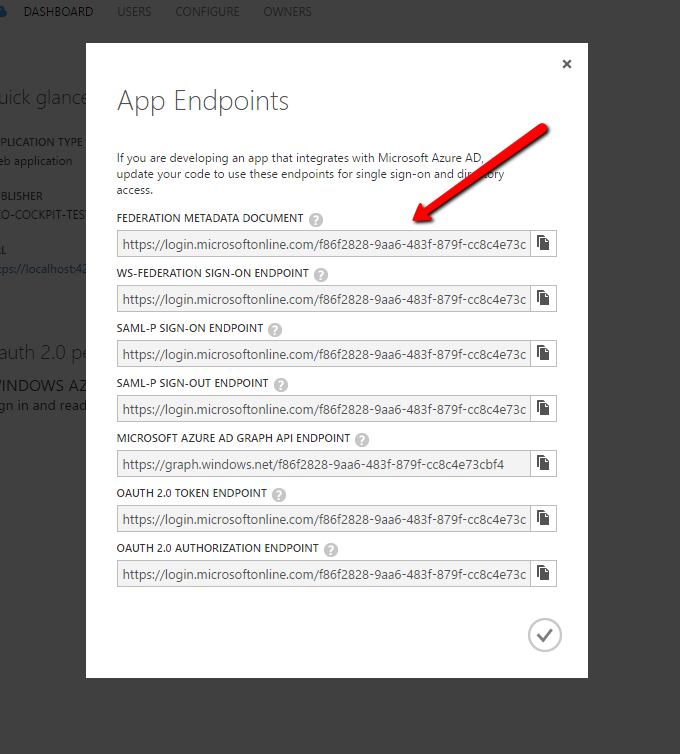

Click "View Endpoints" button to obtain Identity Provider metadata URL

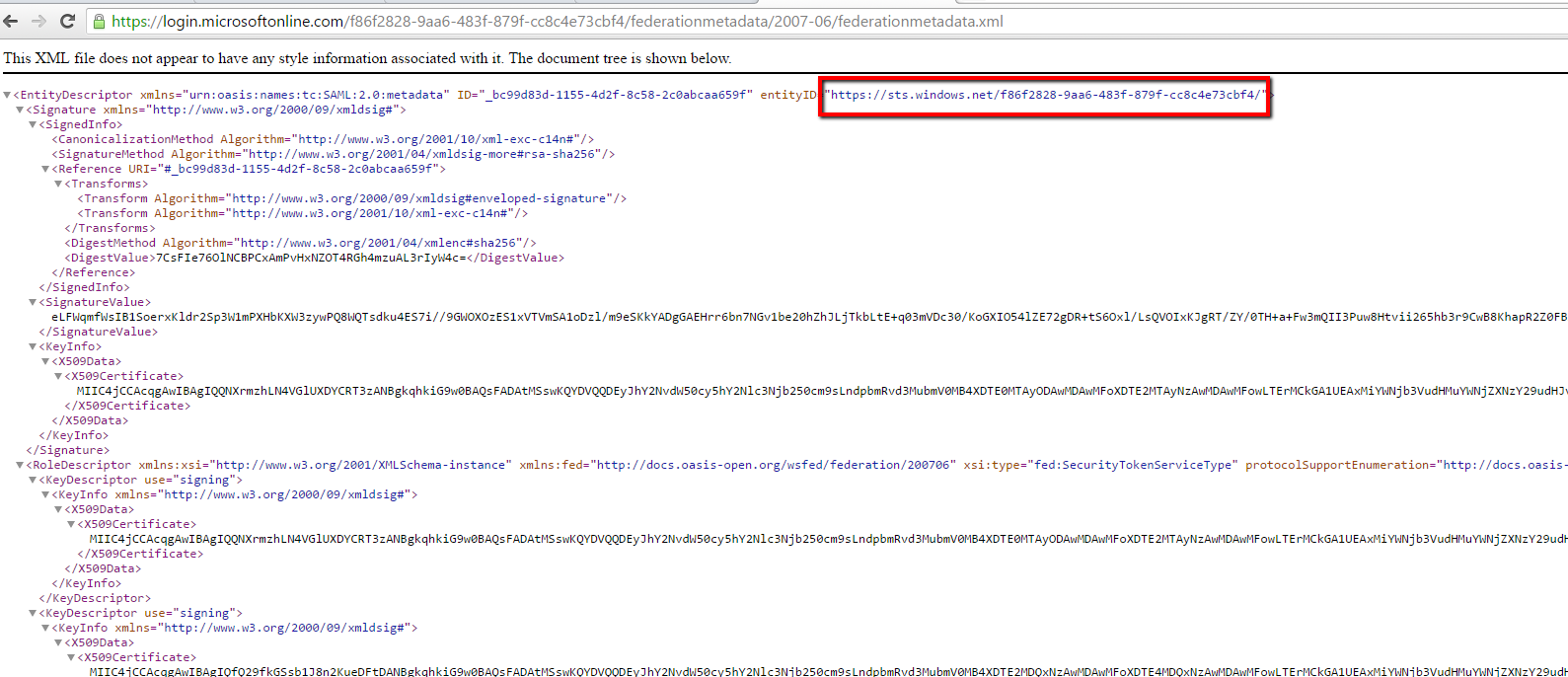

You can obtain entityID of the Identity Provider from the metadata URL.

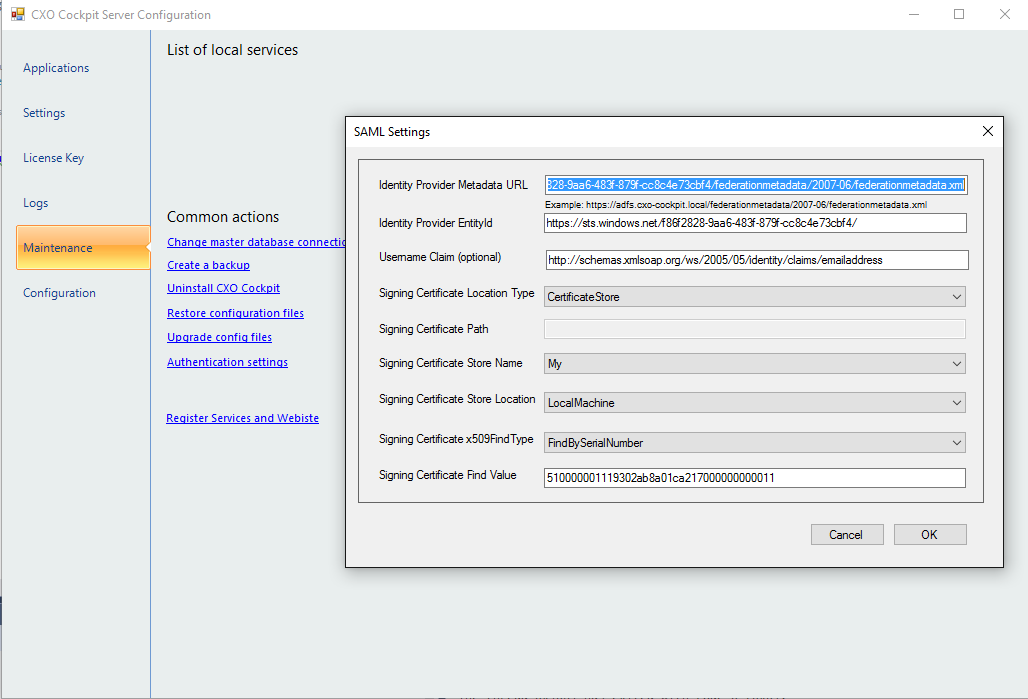

Copy Identity provider metadata URL and entityID and set the SAML authentication settings in CXO Configurator.
